Assembled Size: 150 x 150 × 100mm 90D Metric

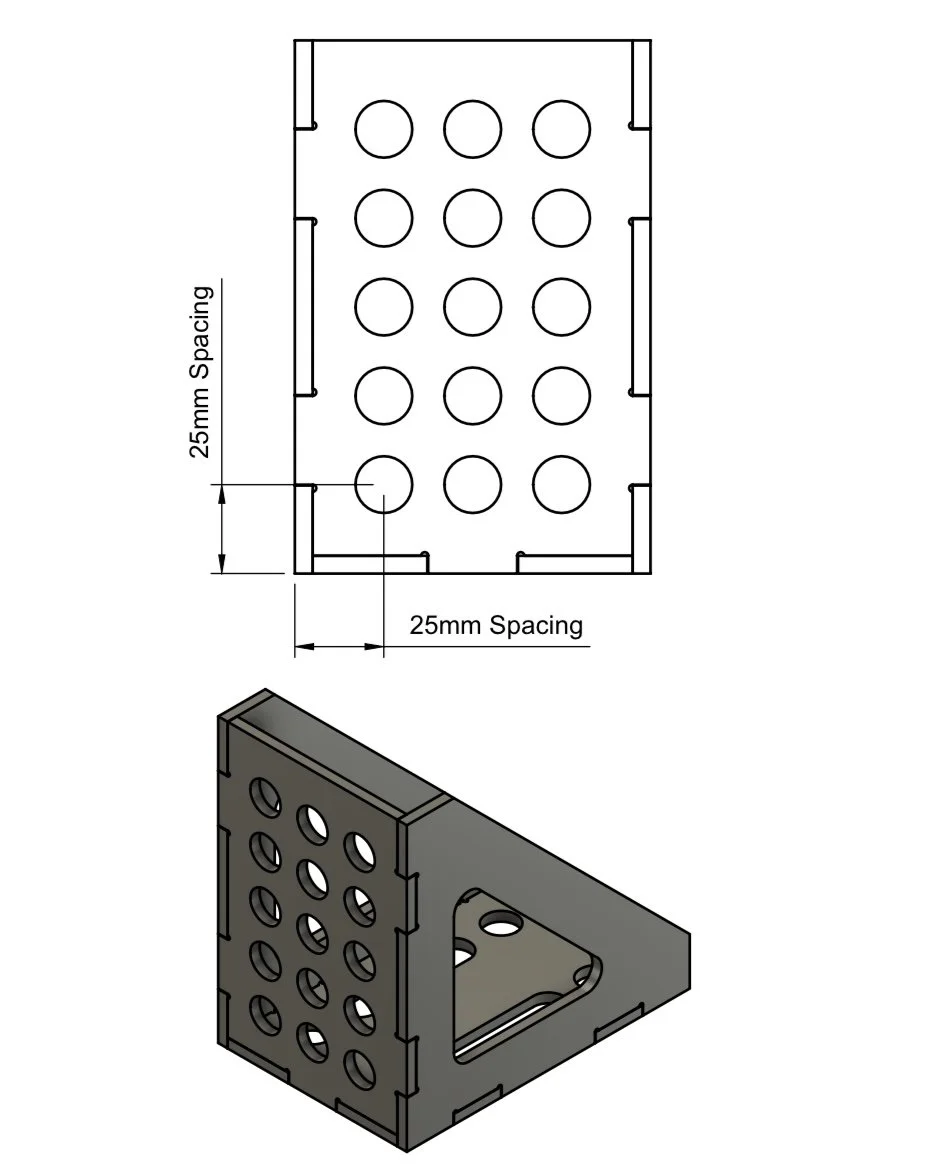

16mm Holes, 25mm Spacing

This listing is for a downloadable DXF file

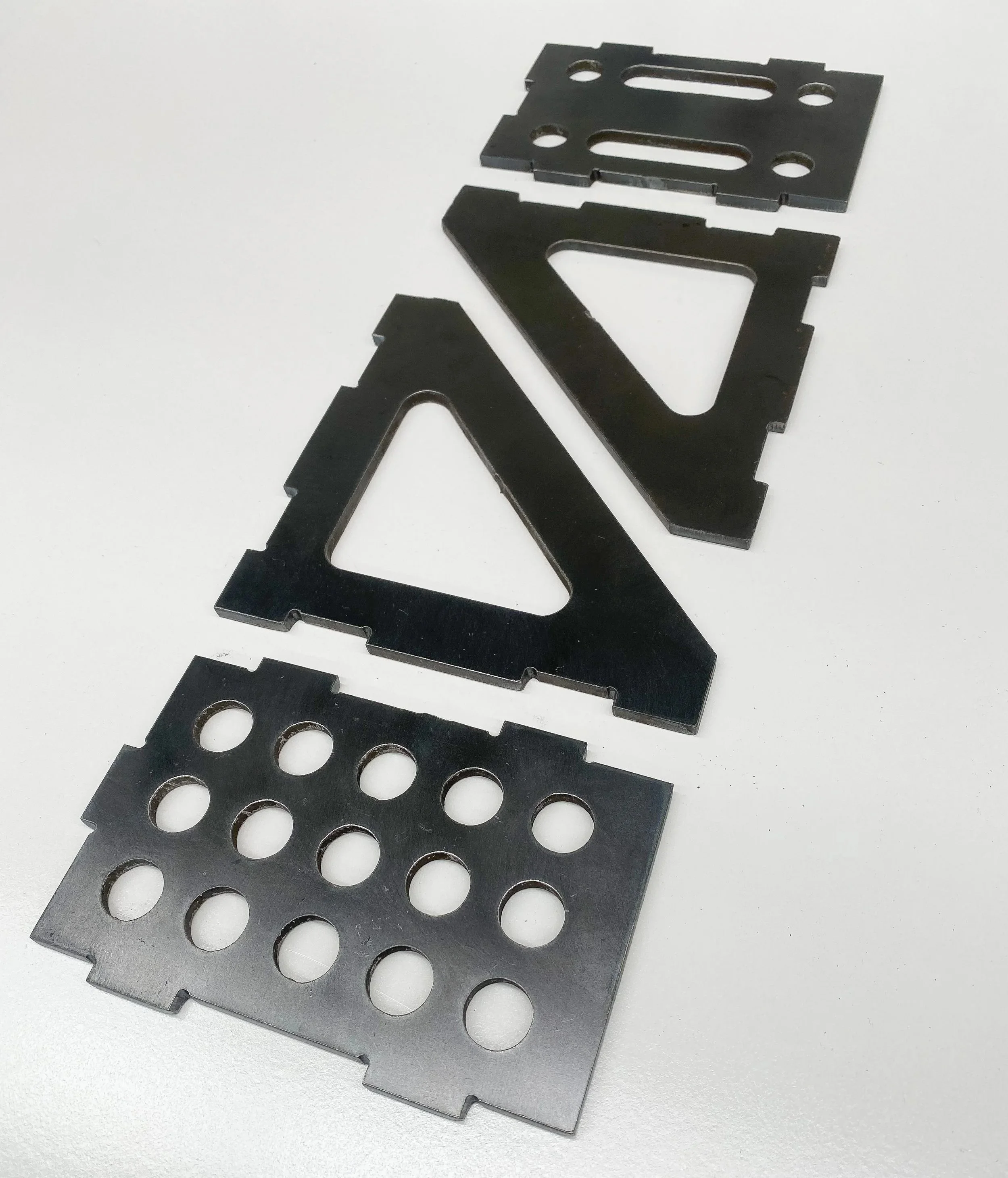

The design allows you to cut all the parts needed to construct your own precision welding / fixturing squares. Take the file to your CNC laser or water jet cutter to produce the components.

✔ Slot-and-tab design for simple, accurate assembly
✔ Precision holes for use with standard fixture table clamps, pins, and accessories
✔ Strong, stable construction to hold materials square while welding
✔ Download instantly and cut as many as you need

Assembly is straightforward:

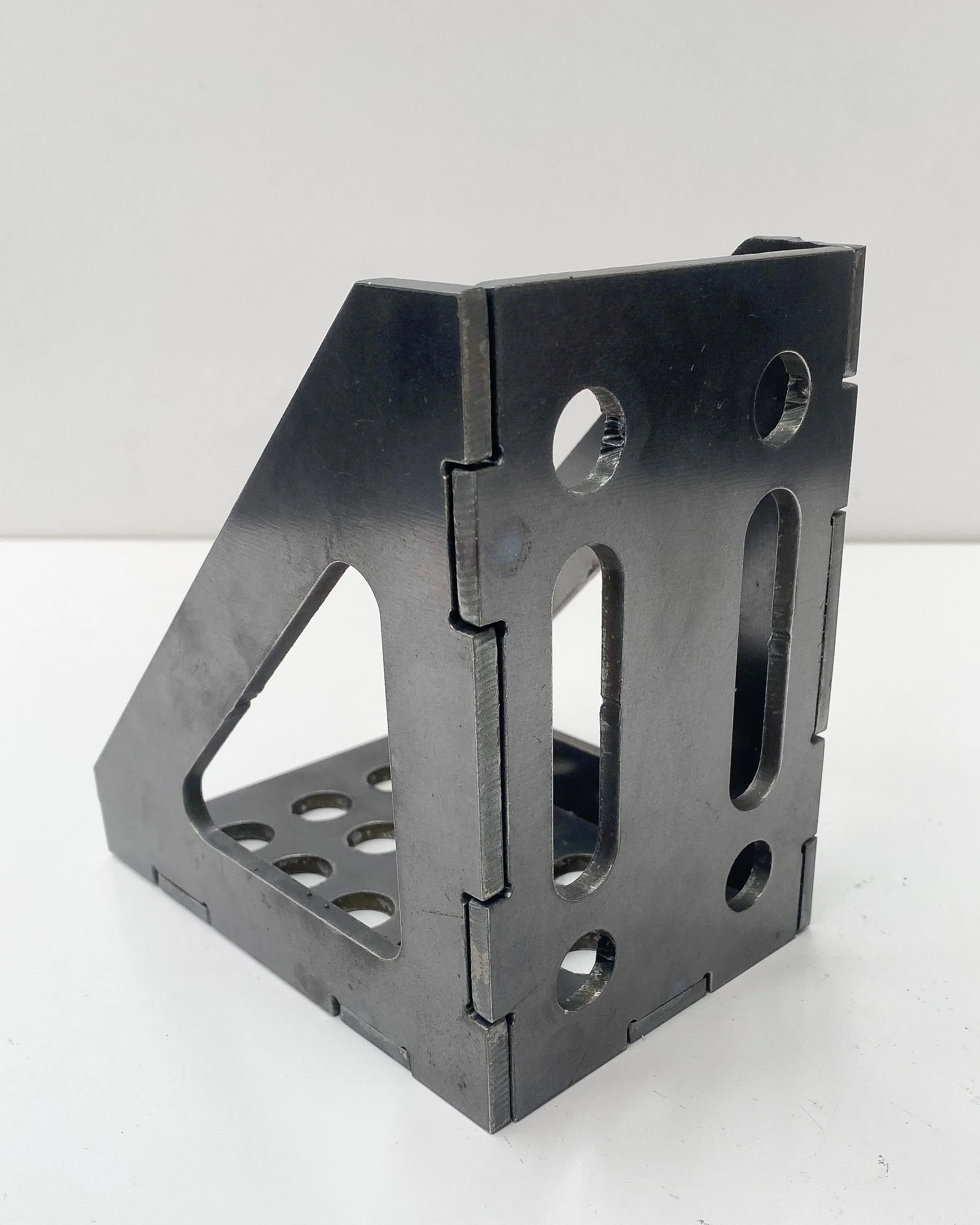

• Quick hot tacks in the designated slots will hold the square together

• Minimal welding required (to reduce distortion)

• Components fit snugly, ensuring accuracy

Please Note:

• DXF file only – no physical item included

• Instant download after payment

• Due to the nature of digital files, returns, exchanges, or cancellations are not accepted
